Product Introduction
TGSS series buried Chain conveyor is a kind of closed continuous conveying equipment which can horizontally. obliquely and vertically transport powder, small particles and small pieces of materials .The buried scraper conveyor uses the principle that the friction between material particles is greater than the external friction between material and machine wall to transport materials as a whole . Use the lower scraper to drag the higher material layer. When the ratio of material layer height to slot width meets certain conditions, the material flow is stable .The utility model has the advantages of small volume and high efficiency. Flexible layout, multi-point feeding and multi-point unloading.
As a well‑known Chinese grain‑machinery brand, our group‑Shengli Grain and Oil Machinery has long‑term supplied professional supporting equipment for numerous grain‑oil factories and peer manufacturers. We have gained high‑level industry reputation and market recognition owing to consistent product quality and dependable after‑sales service. Our scraper conveyor are manufactured under elaborate and strict standards. Every procedure including raw‑material treatment, core‑component machining, accessory selection, surface coating and final assembly is closely inspected to guarantee stability, durability and sanitation of finished machines. The full production process is shown below:
1. Pre-treatment of Raw Materials
All steel plates and section‑bars for the Chain conveyors go through professional pickling and phosphating inside dedicated tanks. Pickling removes scale, rust, grease and contaminants thoroughly, while phosphating forms a compact protective film to enhance paint adhesion and anti‑corrosion performance, avoiding rusting and paint‑peeling in later‑stage operation. After phosphating, work‑pieces are high‑pressure‑rinsed with purified water to wash away residual acid liquor and phosphating residues, preventing chemical leftovers from spoiling subsequent coating quality. The materials are then fully dried for follow‑up baking‑paint treatment.
2. High-grade Food-Grade Surface Coating
Dried work‑pieces are transferred to an automatic electrophoretic and food‑grade electrostatic baking‑paint workshop. Automated electrophoresis ensures uniform paint penetration with firm adhesion without dead‑angle areas or sagging. Combined with food‑grade electrostatic baking‑paint, the finished paint film is compact, smooth, wear‑resistant, corrosion‑proof and pollution‑free, complying with hygiene‑requirements of grain‑oil and chemical industries. It improves equipment appearance and service life to meet dust‑free and sanitary conveying requirements across various sectors.
3. Selection and Self-developed Machining of Core Components
Top brand standard parts are selected for key driving assemblies to secure overall performance:
- Drive motors from Siemens or Wannan: sufficient power, stable running, low energyconsumption and breakdownrate for longtime continuous operation.
- Reducers from SEW or Tongli: high transmission precision, large torque and steady deceleration, lowering operating noise for smooth conveying.
- SKF bearings: excellent wearresistance and hightemperature tolerance with strong loadbearing capacity, cutting abrasion of transmission parts and later maintenance costs.

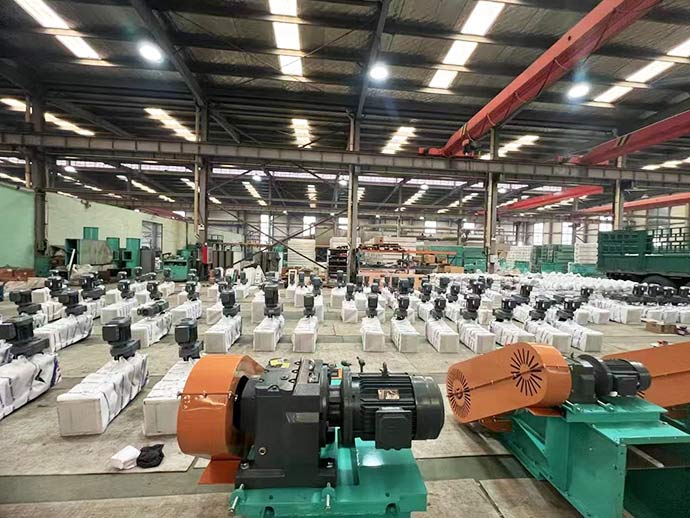

Meanwhile, highprecision transmission shafts and custommade fittings are selfproduced inhouse. Our CNC machine tools turn, grind and calibrate parts in strict accordance with highprecision industrial standards to control coaxiality, flatness and fitting tolerance. Problems like transmission jamming and eccentric shaking are eliminated. Our selfmade components exceed regular industry standards and guarantee highefficiency and stable machine operation.
4. Final Assembly, Inspection and Factory Release
Qualified technicians assemble housings, buckets, sealing parts and transmission assemblies following standardized procedures with precise clearancecontrol.
After assembly, comprehensive factorytests including noload trialrun, loaded debugging, tightness inspection and stability examination are carried out to eliminate hidden troubles. Only units without jamming, materialleakage or abnormal noise and meeting all performance indicators can be delivered to clients.

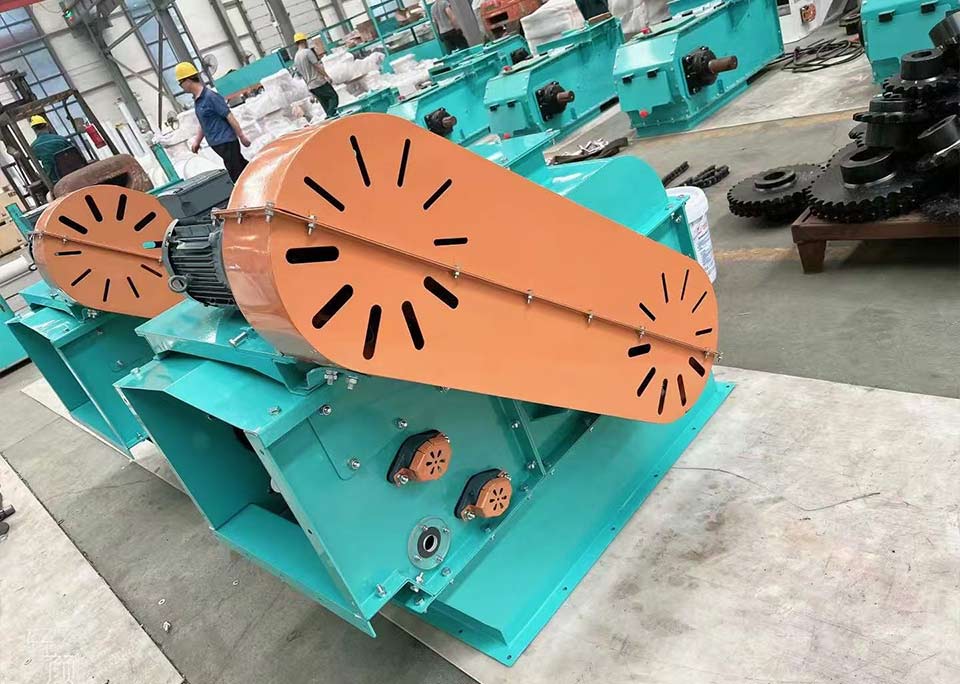

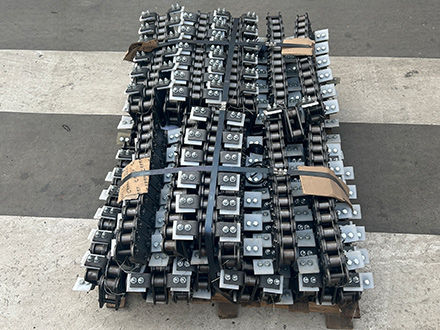

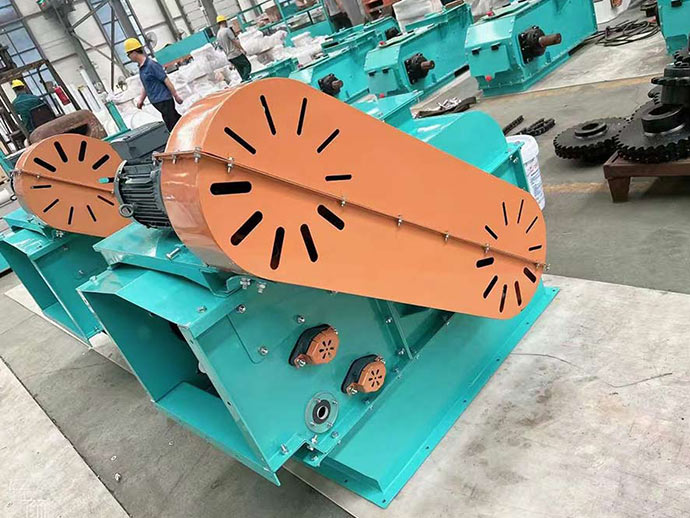

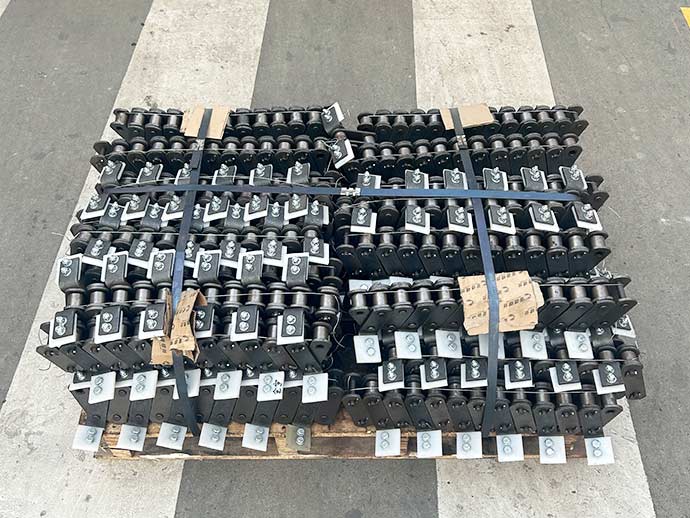

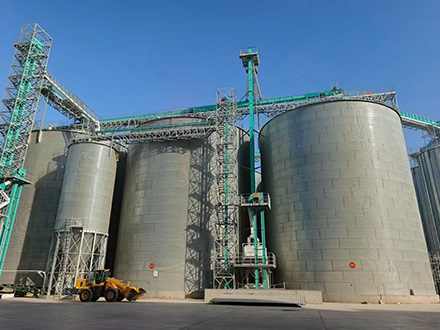

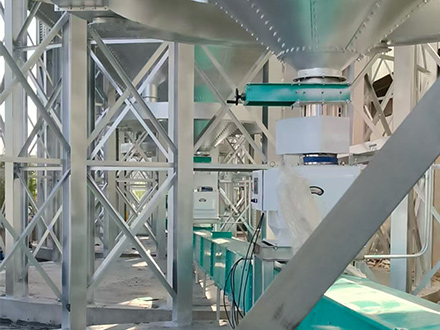

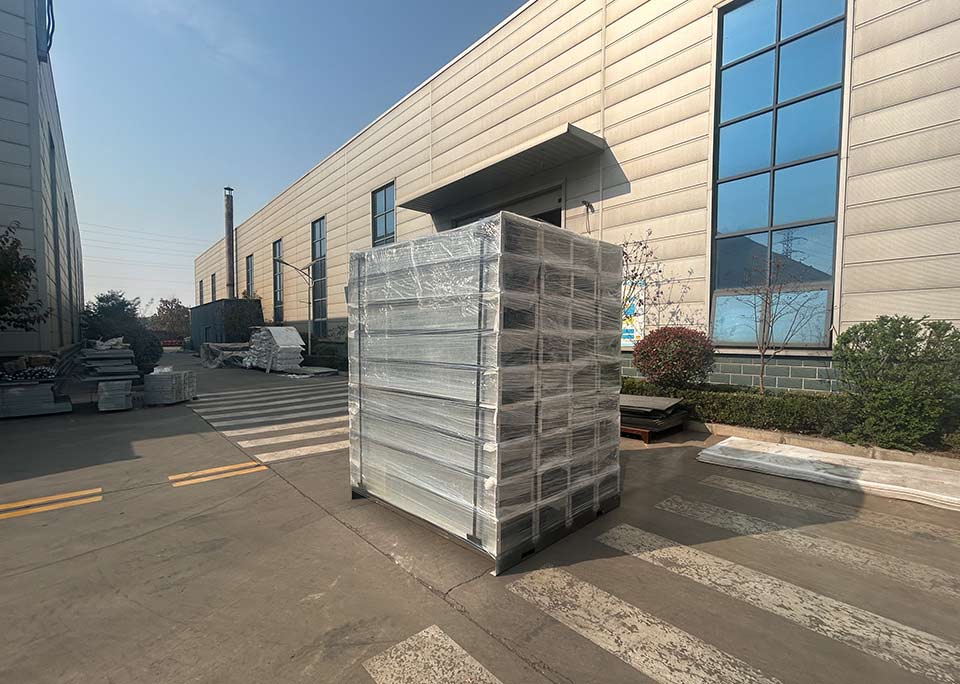

Finished products and project site application

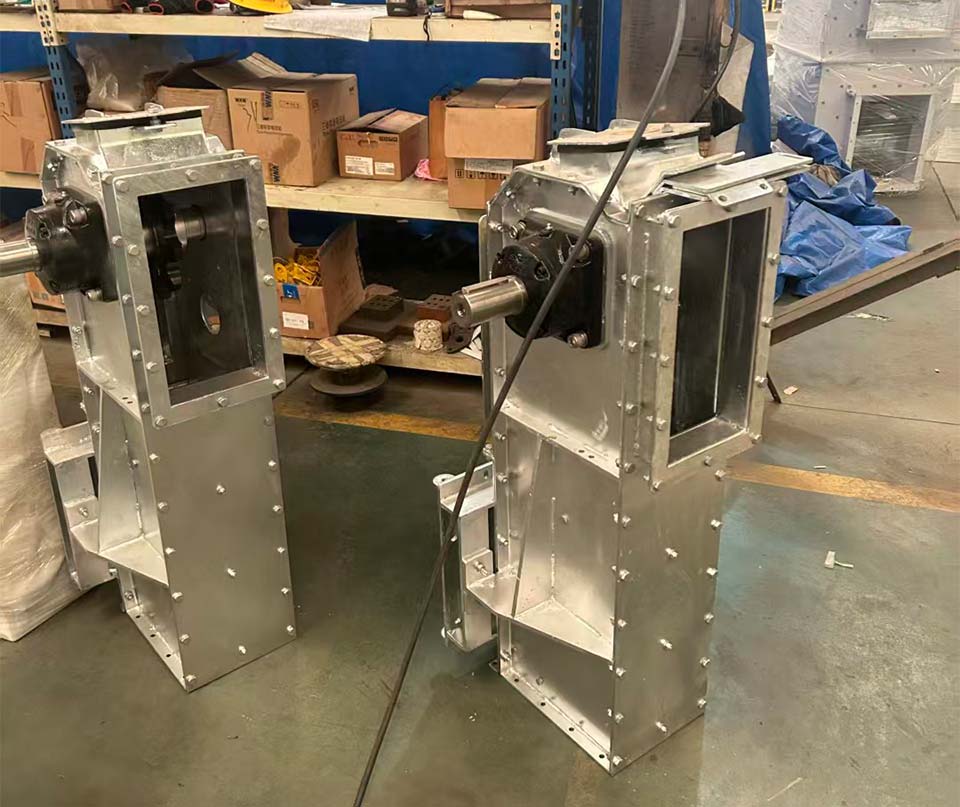

Galvanized Sheet Chain Conveyor(Optional)
Technical parameter
| Model | TGSS16 | TGSS20 | TGSS25 | TGSS32 | TGSS40 | TGSS50 | TGSS60 | TGSS80 |
| Capacity(t/h) | 20 | 30 | 50 | 80 | 120 | 200 | 350 | 500 |
Note : models can be based on different production , matching different models bucket.
