Product Introduction

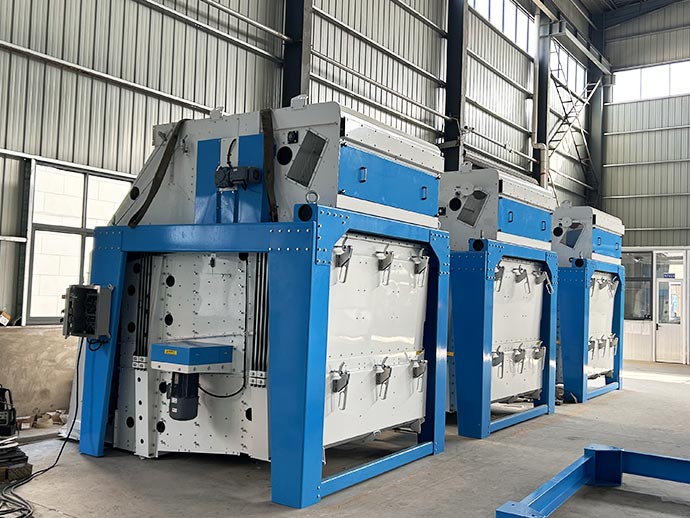

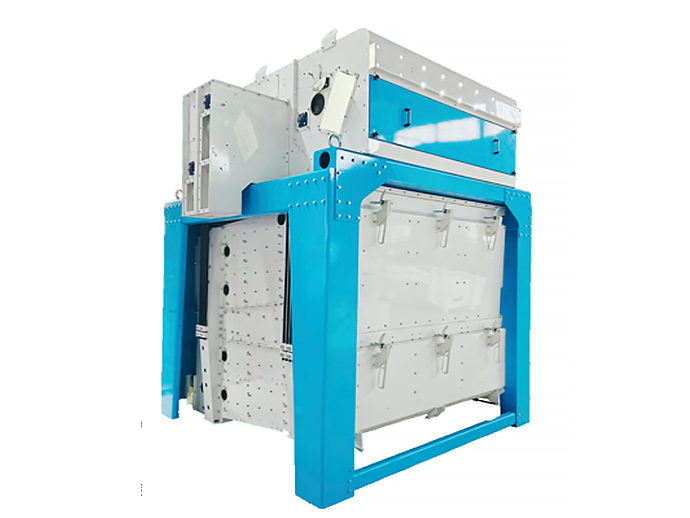

Our HZZD series muti-deck rotary cleaner can remove large and small particles of impurities in the grains and cereals, at the same time, the exhaust system extracts slight impurities such as dust in the grains. It is mainly used for cleaning and grading impurities(large and small impurities) in large-scale industries such as grain, flour milling, feed, rice milling, chemical, industry, oil extraction, and wine making, etc.
Product Features
- Combination of muti-function, four groups eight-layer screen surface configuration, parallel cleaning of materials(large, medium and small impurities), laege effective screening area, large capacity, good cleaning and grading effect;
- Combined hanger rod for screen body suspension, stable running, less vibration to floor or ground;
- Metal screen frame with small thickness, high strength and stiffness, flatting screen, screen deck is easy to install and take out, saving maintenance time;
- Explosion-proof brake motor, safety and reliability, short swimming time;
- Low dynamic power(consume 0.031KW only to clean one ton grain).
Technical parameter
| Model | Rated Capacity（t/h） | Rotating Speed(r/min) | Power(kW) | Air Volume(m³/h) | Weight(kg) | Dimension（L×W×H）(mm) |
| HZZD150*200/8 | 120-140 | 300±5 | 3+0.75+0.04×2 | 12000 | 6100 | 3462×2445×3892 |
| HZZD200*200/8 | 150-180 | 300±5 | 3+0.75+0.04×2 | 15600 | 7100 | 3462×2945×3892 |
Note : models can be based on different different production , matching different models bucket.
