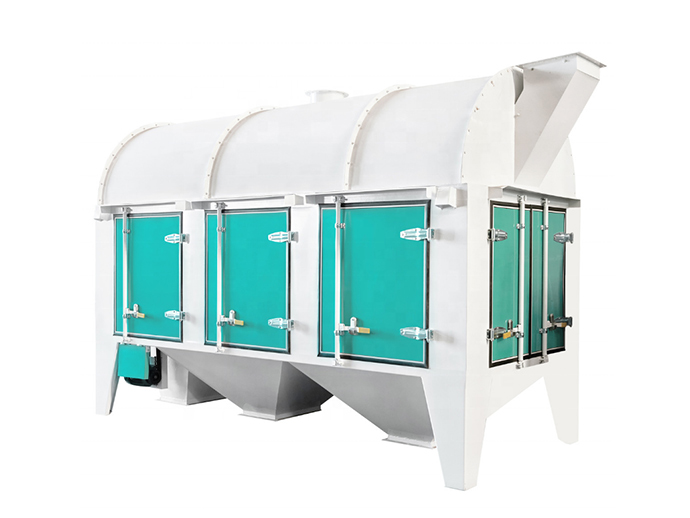

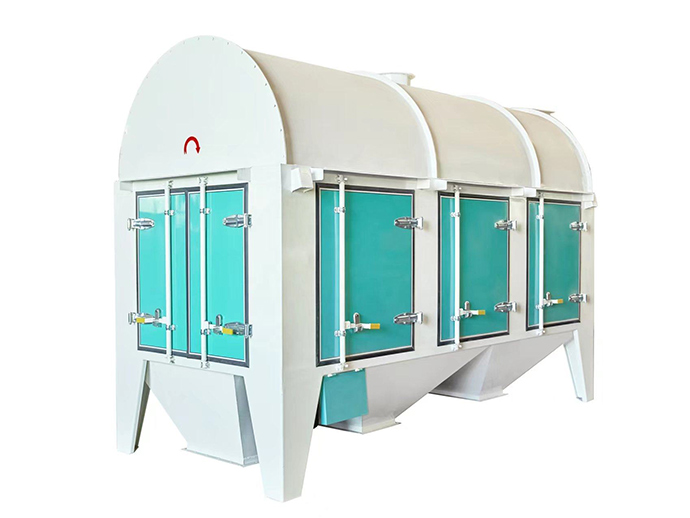

Product Introduction
TSCY series cylinder primary cleaning screener is the latest grain and oil product developed by our company. This machine is a kind of versatile primary cleaning equipment; it can effectively separate all kinds of large impurities in the original grain: such as straw, rope head, bean stick, bean skin, small wooden block, masonry, mud, etc.; It has good cleaning effect and is the ideal pre-cleaning equipment for flour mill, storage, rice, oil, sprinkling, starch, MSG, feed, chemical and other solid particle materials plants. . It can be adjusted within the range of adjustable screen inclination according to the required output and process effect, so as to adjust the speed of the material moving forward in the screen cylinder.
The main structure
The structure of the TSCY series cylinder primary cleaning screen is mainly composed of a walking mechanism, a transmission mechanism, a body, a screen cleaning mechanism, a dust removal mechanism and the like.
Walking mechanism
The running mechanism of the cylinder primary clear sieve is composed of a frame support frame of the sieve body, a walking wheel, a support leg and a drawbar. The frame support frame is welded by a square steel pipe for connecting the traveling wheel and the screen frame to be integrated; and the traveling wheel and the support leg are respectively installed at both ends of the support frame. The entire body is moved by the traction of the drawbar.
Transmission mechanism

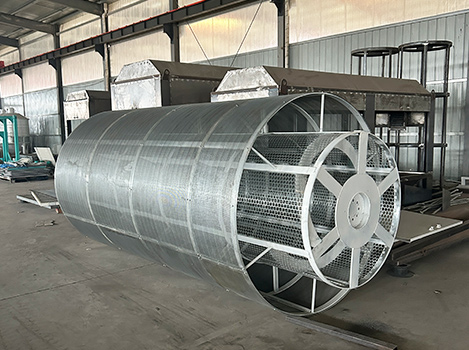

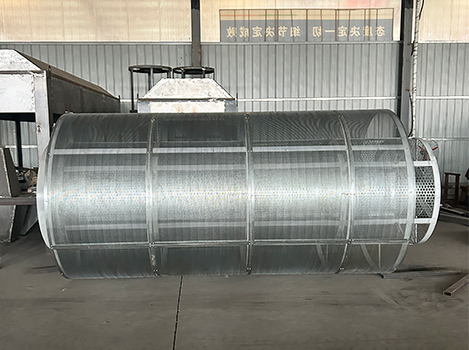

The transmission mechanism of the cylinder primary clearing sieve is composed of a reducer, a sprocket, a chain, a cross-shaft universal coupling, a double straight cylindrical sieve cylinder and a supporting roller. The double straight cylindrical sieve cylinder is assembled by the inner sieve cylinder and the outer sieve cylinder, and then connected by a connecting rod to form a whole. One end of the sieve cylinder is supported by a supporting wheel mounted on the adjustable support frame for supporting the rotation of the sieve cylinder and adjusting the rotation inclination angle of the sieve cylinder; the other end is connected with the cross shaft type universal coupling for arbitrarily changing the sieve The rotation angle of the barrel.
The body

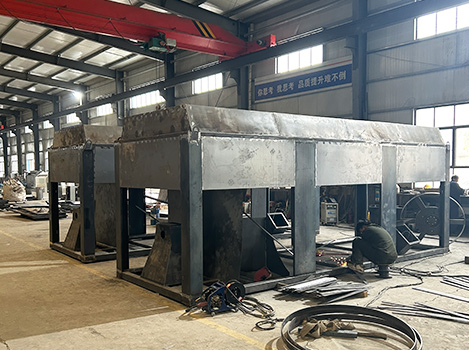

The body of the cylinder primary clear screen consists of a frame and side and end closures. The frame is welded with high-quality steel; the side and end seals are made of high-quality steel plate through laser cutting machine and CNC bending machine. The assembled body is beautiful, firm and has good sealing performance.
Screen cleaning mechanism
The screen cleaning mechanism of the cylinder primary clearing screen is made up of a rectangular brush by the chemically treated goose feather tube; the treated goose feather tube is not easy to be broken, and it can effectively clean the material blocked in the outer sieve barrel hole. And impurities, to ensure the smoothness of the sieve hole of the outer sieve cylinder, thus ensuring a small impurity cleaning effect.
Dust removal mechanism
The dust removal mechanism of the cylinder primary clearing screen is mainly composed of a fan and an air suction pipe (the mobile type is a lower air blowing device, and the fixed type includes upper and lower air suction ports). Its role is to remove dust and light impurities from the grain. The amount of air required to remove different materials is different, and the amount of air is adjusted by an adjustment door mounted in the air duct.
Working principle and working process
Working principle
The TSCY series cylinder primary cleaning sieve utilizes the different sizes of grain particles and impurity particles. Through the continuous rotary screen of the sieve surface, the large impurities contained in the grain larger than the inner sieve pore size and the fine impurities smaller than the outer sieve pore size are included. Separated, equipped with a suction device to remove dust and light impurities from the material stream, so that the material can be cleaned comprehensively and effectively.
The work process
The screen cleaning mechanism of the cylinder primary clearing screen is made up of a rectangular brush by the chemically treated goose feather tube; the treated goose feather tube is not easy to be broken, and it can effectively clean the material blocked in the outer sieve barrel hole. And impurities, to ensure the smoothness of the sieve hole of the outer sieve cylinder, thus ensuring a small impurity cleaning effect.
Technical parameter
| Model | Capacity (t/h) | Air Volume | Screen Size | Power | Rotary Speed（r/min） | |||
| Wheat | Soybean | Maize | Rice | （m³/h) | （mm） | (kw) | ||
| （Φ24/20/18） | （Φ24/20/18） | （Φ24/20/18） | （Φ24/20/18） | |||||
| TSCY85/100 | 20~60 | 20-100 | 20-80 | 10-30 | 980 | Φ850×1050 | 15 | 17 |
| TSCY100/125 | 40~100 | 60-160 | 50-120 | 30-60 | 1380 | Φ1000×1250 | 2.2 | 17 |
| TSCY125/150 | 50-180 | 60-180 | 60-200 | 40-100 | 1820 | Φ850×1050 | 2.2-3 | 15 |
| TSCY125/250 | 80-220 | 120-260 | 100-240 | 60-120 | 2250 | Φ1250×2500 | 2.2-4 | 15 |
| TSCY125/320 | 100-240 | 140-300 | 120-260 | 80-180 | 2680 | Φ1250×3200 | 2.2-5.5 | 15 |
Note : models can be based on different different production , matching different models bucket.
